ABD-2, ABD-2S & ABD-5 Series Air Boosters

Product Features and Specifications

  • General Product Information
    • schydraulic-abd-2airbooster schydraulic-abd-5airbooster
      HIGH FLOW CAPACITY
      REQUIRES NO LUBRICATION
      DOUBLE ACTING, SINGLE STAGE
      PRESSURES UP TO 855-PSI (ABD-5)
      AIR OPERATED DOES NOT REQUIRE ELECTRICITY

      The ABD-2, ABD-2S and ABD-5 are double-acting, single stage air boosters in 2:1 and 5:1 ratios. These boosters can supply equipment with added air pressure when plant supplies are depleted due to overuse or under-sizing. The volume available from the boosters is ample for most equipment applications or units can be paralleled for additional capacity.

      Applications requiring constant cycling should be sized so that the speed of operation does not exceed 40 cycles per minute (CPM). The easiest way to determine if an application meets or exceeds the recommended operating procedures is to fill out the online Air Booster Worksheet. Someone from our Customer Service Department will contact you ready to provide assistance.

  • Applications
    • Engine air starter systems
      Top off high pressure tires
      Release spring actuated brakes
      Increase maximum torque on small air tools
      Top off and maintain pressure in die cushions
      Increase marginal air pressure to valve actuators
      Extra force for small air clamps, roll tensioners, assembly machines and air presses

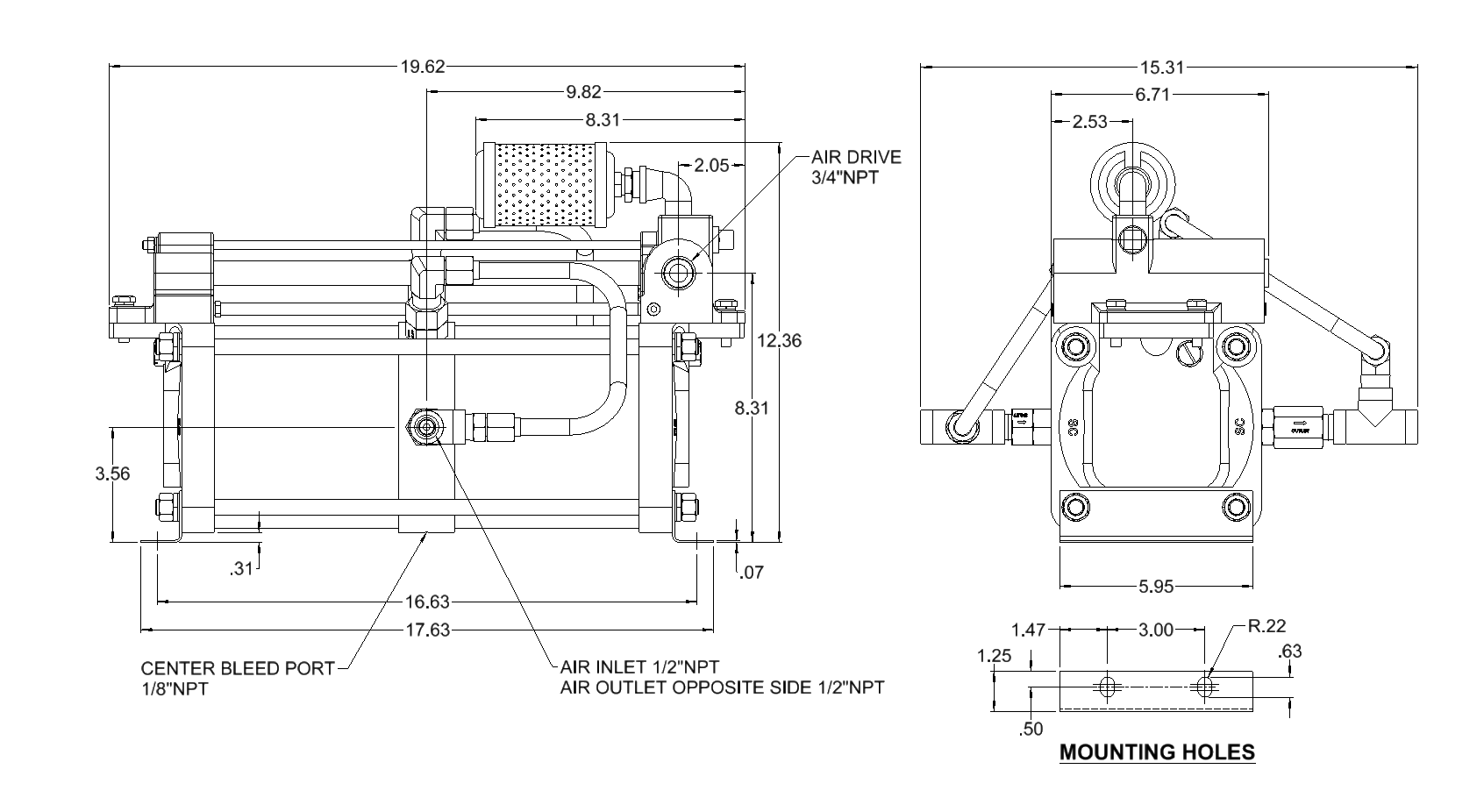

  • Dimensions
    • schydraulic-abd-2boosterdims schydraulic-abd-2Sboosterdims schydraulic-abd-5boosterdims
      MODEL SELECTION CHART
      Model No. Maximum Rated
      Air Supply (Ps)
      Maximum Rated
      Air Outlet (Po)
      Connection Ports Static Outlet
      Stall Pressure
      Actual Area
      Ratio
      Displacement
      Per Stroke
      (in3 per cycle)
      Air Drive Air Inlet Air Outlet
      ABD-2 & ABD-2S 150 psig 300 psig 3/4" NPT 1/2" NPT 1/2" NPT Pa + Ps 2:01 223
      10.3 bar 21 bar
      ABD-5 150 psig 855 psig 3/4" NPT 1/2" NPT 1/2" NPT 4.7 Pa + Ps 4.7:1 28.2
      10.3 bar 59 bar

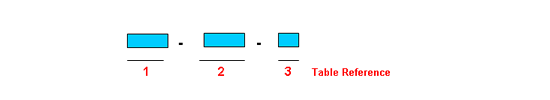

  • Ordering
    • schydraulic-abd-2&abd-5ordering
      TABLE 1 Air Booster Series (1)
      ABD Single Stage Double Acting
      TABLE 2 Modification
      Blank No Modifications
      M200 Refrigerant Recovery (2)
      M201 No Inlet / Outlet Plumbing (2)
      M202 Remote Pilot
      M203 No Inlet / Outlet Plumbing, Remote Pilot (2)
      M204 Cooling Jacket (2)
      M205 Cooling Jacket, Remote Pilot (2)
      M206 Cooling Jacket, No Inlet / Outlet Plumbing (2)
      M207 Cooling Jacket, No Inlet / Outlet Plumbing, Remote Pilot (2)
      TABLE 3 Pressure Ratio
      2 & 2S ABD
      2 ABD
      Notes: (1) Do not fill gap on a two digit description.
      (2) Available on ABD-5 only
  • Modifications
    • M202 - Remote Pilot:These models utilize dual seals in the hydraulic assembly with a bleed-off between the seals to atmosphere, thus providing a visual indication of hydraulic seal leakage. Used where contamination of the air motor from the hydraulic fluid being pumped is objectionable.

      M205 - Cooling Jacket: The "B" models have a bottom inlet connection for convenient tank top installation or alternate mounting configuration.

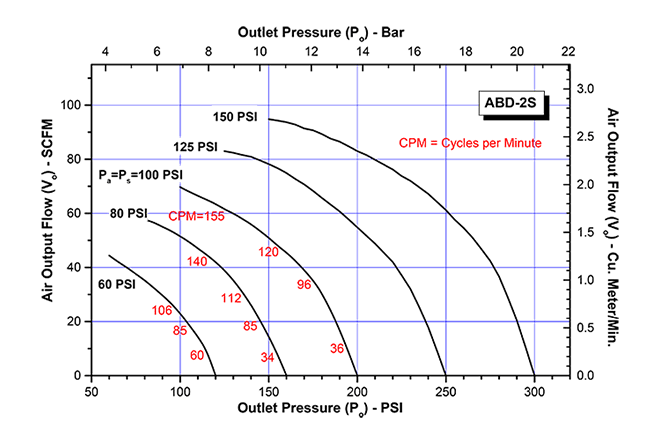

  • Performance Chart
    • schydraulic-abd-2perfchart schydraulic-abd-2Sperfchart schydraulic-abd-5perfchart
