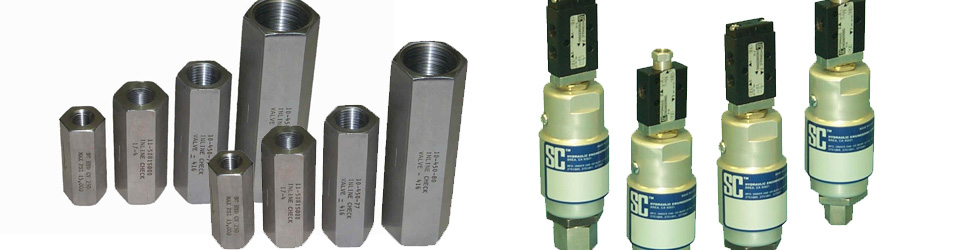

ICV Inline Check Valves

Product Features and Specifications

  • General Product Information
    • schydraulic-icvcheckvalves
      PRESSURES UP TO 15,000-PSI
      COMPATIBLE WITH MOST FLUIDS
      STAINLESS STEEL CONSTRUCTION
      CAPABLE OF RESISTING HIGH SHOCK LOADS
      CRACKING PRESSURE WITHIN 1-PSI TO 3-PSI

      SC Hydraulic Engineering inline check valves are designed for high shock loads using a ball check for positive sealing. The all stainless steel construction will handle most liquids or gas. Cracking pressure on all sizes is one to three psi.

  • Applications
    • Hydrostatic testing
      Protect system components from back pressure
      Prevent mixture of fluids in multiple-fluid-systems
  • Dimensions

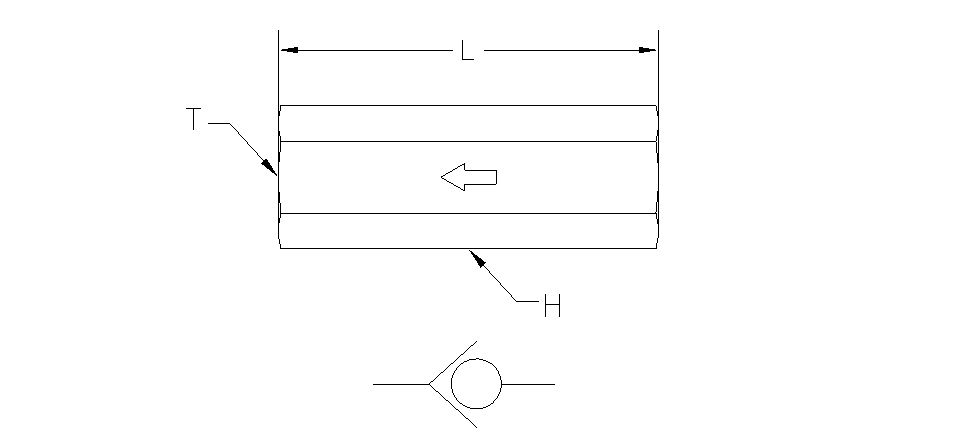

    • schydraulic-icvinlinecheckvalvesdims
      MODEL NO. "T" THREAD
      NPT
      "H" DIM. HEX "L" DIM. Cv FACTOR MAX. WORKING
      PRESSURE (PSI)
      MATERIAL
      ICV-150-N-025 1/4" 15/16" 2.37" 0.4 15,000 316 SS
      ICV-100-T-037 3/8" 1 1/8" 2.88" 1.1 10,000 303 SS
      ICV-100-T-050 1/2" 1 1/8" 3.44 1.95 10,000 303 SS
      ICV-080-T-100 1" 1 1/2" 4.88 5.05 8,000 303 SS
  • Ordering

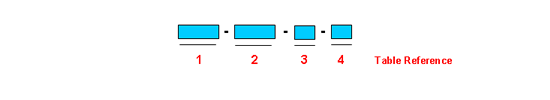

    • schydraulic-valveordering
      TABLE 1 Valve Series
      ICV Inline Check Valve
      TABLE 2 Max Operating Pressure Examples
      000 Less than 100 PSI
      001 100 PSI
      010 1,000 PSI
      011 1,100 PSI
      100 10,000 PSI
      110 11,000 PSI
      TABLE 3 Seal Compound (1)
      N Buna-N
      V Viton
      E EPR
      T PTFE
      TABLE 4 Pressure Port Size (1)
      025 1/4" NPT
      037 3/8" NPT
      050 1/2" NPT
      100 1" NPT
      HF4 High Pressure for 60 KSI
      HF9 High Pressure for 40 KSI
      Notes: (1) Not all options are available on all valves
