ABD-5 Air Booster System

Product Features and Specifications

  • General Product Information
    • schydraulic-abd-5airboostersystem
      EQUIPPED WITH ONE ABD-5 BOOSTER
      HIGH FLOW, HIGH PRESSURE APPLICATIONS
      PRESSURES UP TO 600-PSI
      INCLUDES AIR DRIVE CONTROLS
      WEIGHS APPROXIMATELY 85-LBS
      5-GALLON ASME RECEIVER TO INCREASE FLOW CAPACITY

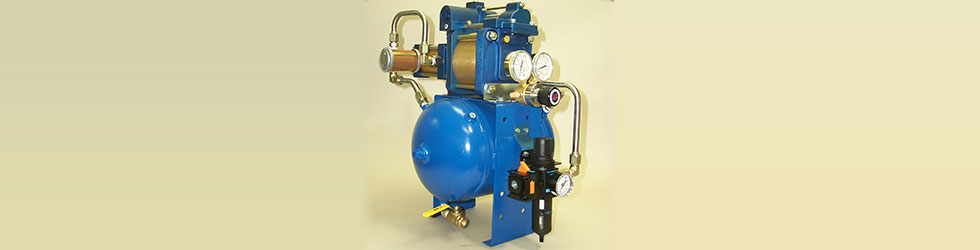

      The S10320-ABD-5 System combines the rugged 5:1 ratio, single-stage, double acting booster with a 600 PSI ASME reservoir for high pressure applications needing a five gallon reserve.

      The unit can be mounted either horizontally, as shown, or vertical on a wall or equipment structure. The compete unit weighs approximately 85 pounds.

      The system is ready for hook-up to an air supply and includes an inlet filter/regulator with shut-off and gauge, safety relief valve, muffler, high pressure regulator, and high pressure reservoir and outlet pressure gauges.

      The S10320-ABD-5 system can save money when requirements need up to a 600 PSI supply of air with reserve capacity. Contact us or one of our authorized distributors for application or sizing assistance.

  • Applications
    • Applications requiring higher flow
      Increase plant air pressure
      Increase marginal air pressure to valve actuators
      Increase maximum torque on small air tools
      Extra force for small air clamps, roll tensioners, assembly machines and air presses

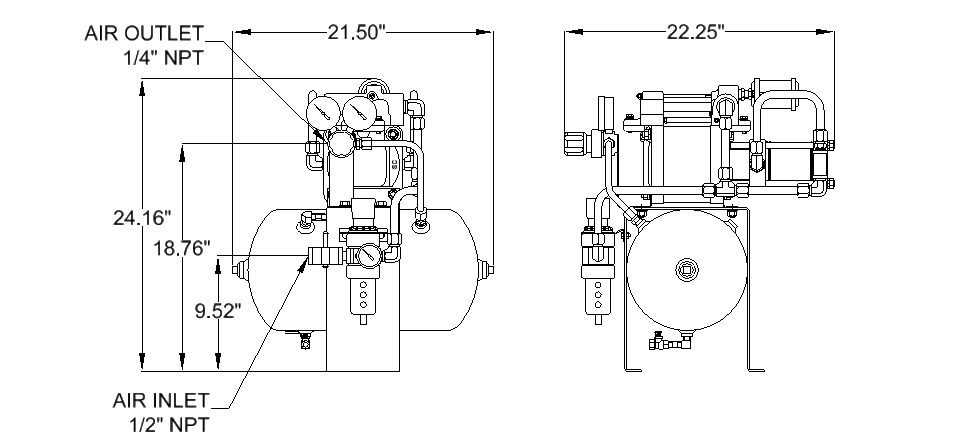

  • Dimensions
    • schydraulic-abd-5boostersystemdims
      MODEL SELECTION CHART
      Model No. Maximum Rated
      Air Supply (Ps)
      Maximum Rated
      Air Outlet (Po)
      Connection Ports Static Outlet
      Stall Pressure
      Actual Area
      Ratio
      Displacement
      Per Stroke
      (in3 per cycle)
      Air Drive Air Inlet Air Outlet
      ABD-5 150 psig 855 psig 3/4" NPT 1/2" NPT 1/2" NPT 4.7 Pa + Ps 4.7:1 28.2
      10.3 bar 59 bar
  • Ordering
    • schydraulic-10320-abd-2ordering
      TABLE 1 Air Booster Series (1)
      ABD Single Stage Double Acting
      TABLE 2 Modification
      Blank No Modification
      M200 Refrigerant Recovery
      M201 No Inlet /Outlet Plumbing
      M202 Remote Pilot
      M203 No Inlet / Outlet Plumbing, Remote Pilot
      M204 Cooling Jacket
      M205 Cooling Jacket, Remote Pilot
      M206 Cooling Jacket, No Inlet / Outlet Plumbing
      M207 Cooling Jacket, No Inlet / Outlet Plumbing, Remote Pilot
      TABLE 3 Pressure Ratio
      5 ABD
      Notes: (1) Do not fill gap on a two digit description
  • Modifications
    • M202 - Remote Pilot:This option provides a 1/8'' NPT female port for remotely controlling the start/stop of the pump by connecting an external air signal to actuate the air cycling valve.

      schydraulic-m002mod

      M205 - Cooling Jacket:This option provides an air-cooling system to lower the operating temperature in the high-pressure section, therefore extending the life of seals, bearings, and other performance critical parts. Cool exhaust air from the drive section flows around the gas barrel to remove heat from the high pressure section.

  • Performance Chart
    • schydraulic-abd-5perfchart
