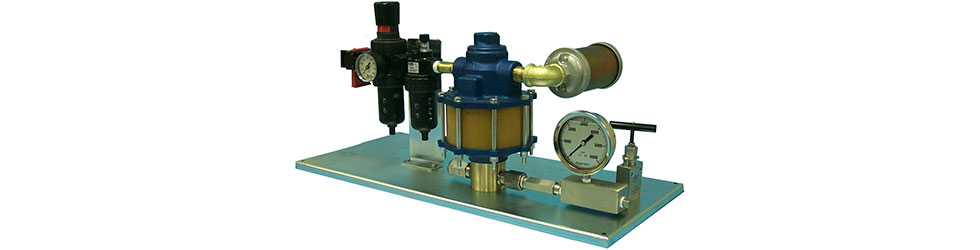

S10013 L3 Tank Mount Power Units

Product Features and Specifications

  • General Product Information
    • schydraulic-s10013-l3seriespowerunit
      COMPACT AND LIGHTWEIGHT
      INCLUDES ONE GALLON POLYETHYLENE RESERVOIR
      AVAILABLE WITH ALL L3 SERIES STANDARD PUMP MODELS
      OVERALL DIMENSIONS 18’’x19’’x15’’ AND WEIGHS 15 POUNDS
      INCLUDES AIR CONTROLS, HIGH-PRESSURE GAUGE AND RETURN LINE

      The power unit is lightweight weighing only 15 pounds and has a small footprint of only 8" by 10" and 16" high.

      The low cost S10013 is perfect for auxiliary hydraulic power for clamps, cylinders, etc. when volume is not a factor.

  • Applications
    • Crimping
      Valve actuation
      Pressure testing
      Torque wrenches
      Clamping devices
      Trash compactors
      Well control panels
      Press system overload
      Punches and pin presses
      Roller and bolt tensioning
      Scissor jack lifts, aircraft jacks
  • Dimensions
    • schydraulic-s10013-l3seriespowerunitdims

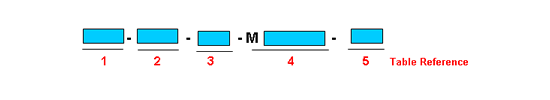

  • Ordering
    • schydraulic-l3seriespowerunitordering
      TABLE 1 Power Unit Designation (4)
      S10013 Tank Top Mount 1.0 Gal. Reservoir
      TABLE 2 Pump Series Designation
      L3 Compact Pump Stainless Steel Hydraulic Section
      L3C Compact pump Carbon Steel Hydraulic Section
      L3S Compact Pump All Stainless Steel Construction
      TABLE 3 Seal Compound - Hydraulic Section
      Blank Std- Buna-N O-rings, Polyurethane Main Seal
      03 EPR O-rings, Polyurethane Main Seal
      04 Viton O-rings, Polyurethane Main Seal
      TABLE 4 Modifications
      Blank Standard - No Modifications
      M002 Remote Pilot
      M003 SAE Straight Thread Ports
      M004 Hand Pump Attachment
      M005 Distance Piece—Isolator
      M006 No Air Piston Return Spring
      M008 Noise Reduction
      M009 7/16"-20 x 1/4" High Pressure Fitting Outlet
      TABLE 5 Pump Ratio
      15 20:1 Actual Ratio
      25 31:1 Actual Ratio
      35 40:1 Actual Ratio
      45 55:1 Actual Ratio
      65 79:1 Actual Ratio
      105 123:1 Actual Ratio
      125 138:1 Actual Ratio
      Notes: Additional Special Modifications may be included with an "M" suffix at the end of the model number.
  • Modifications
    • M002 - Remote Pilot: This option provides for a separate 1/8" NPT external air to pilot cycling valve. Useful for remote control operation of the pump.

      schydraulic-m002mod
      M003 - Straight Threads: The straight thread modification offers the fluid inlet and outlet ports with SAE straight thread options.

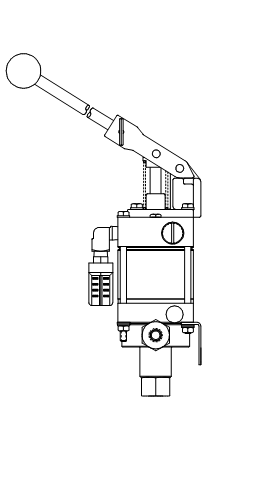

      M004 - Integral Hand Pump Attachment:This modification permits supplementary operation of the pump by hand. Useful in precise testing or emergency back-up applications requiring a hand pump in addition to pneumatic power. schydraulic-m004mod

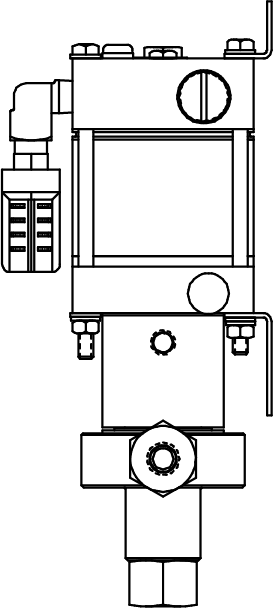

      M005 - Distance Piece: The distance piece models are furnished with an isolator attachment which prevents the hydraulic piston from retracting into the air drive during operation, thus providing 100% separation of the hydraulic assembly from the air drive assembly. The isolator attachment prevents contamination and acts as a heat barrier. schydraulic-m005mod
      M006 - No Air Piston Return Spring:This modification provides improved fill on the suction stroke when pumping liquefied gases such as CO2.
      M008 - Noise Reduction: Noise reduction incorporates a special internal bumper allowing the pump to run quieter without impairing performance.
      M009 - 1/4" O.D. High Pressure Tubing Fluid Outlet: This modification provides a coned and threaded high pressure connection for 20 KSI 1/4" O.D. tubing (7/16-20 thread LF4 connection).
