ASV Air Sequence Valves

Product Features and Specifications

  • General Product Information
    • schydraulic-asvairsequencevalve
      AIR ACTUATED - NO ELECTRICITY REQUIRED
      1/2'' NPT PORTS FOR HIGH FLOW CAPACITY
      ADJUSTABLE PRESSURE SETTING FROM 25-PSI TO 100-PSI

      The ASV-100-N-050 Air Sequence Valve is a normally closed adjustable pilot operated valve used to divert air pressure to a branch circuit after a set pressure is achieved. The internal pilot setting can be adjusted from 25 to 100 psi and the valve can be mounted in any position. The 1/2" NPT ports and poppet design allows ample flow through the valve.

  • Applications
    • Clamping
      Control actuators
      Control start-up pressures of hydraulic systems
      Control pressure sequences from primary to secondary circuits

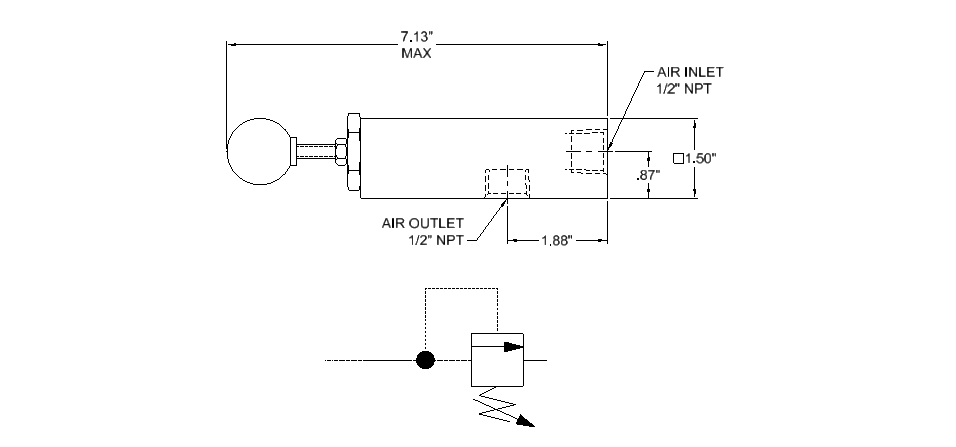

  • Dimensions
    • schydraulic-asvairsequencevalvedims
  • Ordering
    • schydraulic-valveordering
      TABLE 1 Valve Series
      ASV Air Sequence Valve
      TABLE 2 Max Operating Pressure Examples
      001 100 PSI
      TABLE 3 Seal Compound
      N Buna-N
      TABLE 4 Pressure Port Size
      050 1/2" NPT
