S10014 L3 Base Mount Power Units

Product Features and Specifications

  • General Product Information
    • schydraulic-s10014-l3seriespowerunit
      COMPACT AND LIGHTWEIGHT
      AVAILABLE WITH ALL L3 SERIES STANDARD PUMP MODELS
      OVERALL DIMENSIONS 9"x10.5"x9" AND WEIGHS 15 POUNDSS
      INCLUDES AIR CONTROLS, HIGH-PRESSURE GAUGE AND BLEED VALVE

      Our most basic L3 Series power unit consists of just the air controls, pump, high pressure gauge, manifold and bleed valve. The components are mounted on a 9" by 10 1/2" base by 9" high and weighs only 20 pounds.

  • Applications
    • Crimping
      Valve actuation
      Pressure testing
      Torque wrenches
      Clamping devices
      Trash compactors
      Well control panels
      Press system overload
      Punches and pin presses
      Roller and bolt tensioning
      Scissor jack lifts, aircraft jacks

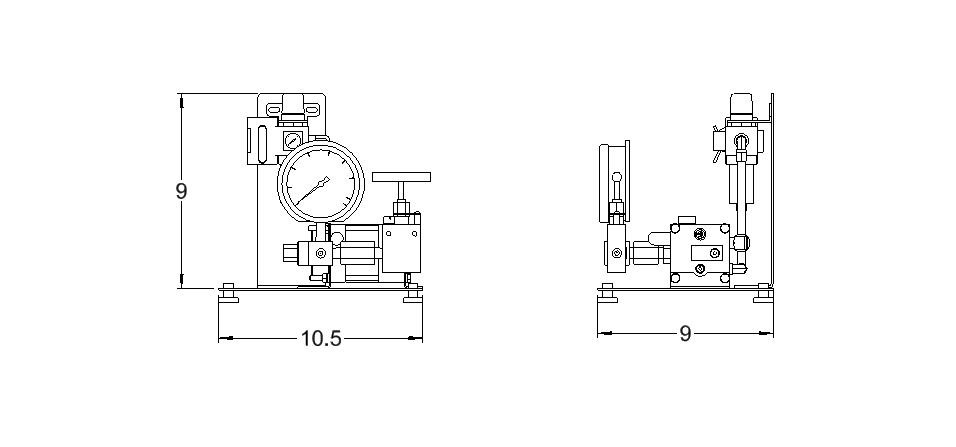

  • Dimensions
    • schydraulic-s10014-l3seriespowerunitdims
  • Ordering
    • schydraulic-l3seriespowerunitordering
      TABLE 1 Power Unit Designation (4)
      S10014 Tank Top Mount 1.0 Gal. Reservoir
      TABLE 2 Pump Series Designation
      L3 Compact Pump Stainless Steel Hydraulic Section
      L3C Compact pump Carbon Steel Hydraulic Section
      L3S Compact Pump All Stainless Steel Construction
      TABLE 3 Seal Compound - Hydraulic Section
      Blank Std- Buna-N O-rings, Polyurethane Main Seal
      03 EPR O-rings, Polyurethane Main Seal
      04 Viton O-rings, Polyurethane Main Seal
      TABLE 4 Modifications
      Blank Standard - No Modifications
      M002 Remote Pilot
      M003 SAE Straight Thread Ports
      M004 Hand Pump Attachment
      M005 Distance Piece-Isolator
      M006 No Air Piston Return Spring
      M008 Noise Reduction
      M009 7/16"-20 x 1/4" High Pressure Fitting Outlet
      TABLE 5 Pump Ratio
      15 20:1 Actual Ratio
      25 31:1 Actual Ratio
      35 40:1 Actual Ratio
      45 55:1 Actual Ratio
      65 79:1 Actual Ratio
      105 123:1 Actual Ratio
      125 138:1 Actual Ratio
      Notes: Additional Special Modifications may be included with an "M" suffix at the end of the model number.
  • Modifications
    • M002 - Remote Pilot: This option provides for a separate 1/8" NPT external air to pilot cycling valve. Useful for remote control operation of the pump.

      schydraulic-m002mod
      M003 - Straight Threads: The straight thread modification offers the fluid inlet and outlet ports with SAE straight thread options.
      M004 - Integral Hand Pump Attachment:This modification permits supplementary operation of the pump by hand. Useful in precise testing or emergency back-up applications requiring a hand pump in addition to pneumatic power. schydraulic-m004mod
      M005 - Distance Piece: The distance piece models are furnished with an isolator attachment which prevents the hydraulic piston from retracting into the air drive during operation, thus providing 100% separation of the hydraulic assembly from the air drive assembly. The isolator attachment prevents contamination and acts as a heat barrier. schydraulic-m005mod
      M006 - No Air Piston Return Spring:This modification provides improved fill on the suction stroke when pumping liquefied gases such as CO2.
      M008 - Noise Reduction: Noise reduction incorporates a special internal bumper allowing the pump to run quieter without impairing performance.
      M009 - 1/4" O.D. High Pressure Tubing Fluid Outlet: This modification provides a coned and threaded high pressure connection for 20 KSI 1/4" O.D. tubing (7/16-20 thread LF4 connection).
