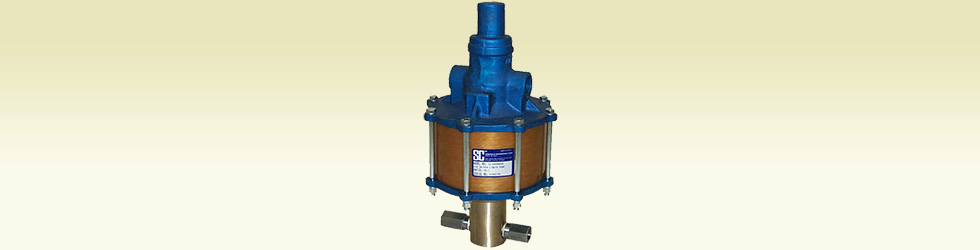

10-6 & D6 Liquid Pump

Product Features and Specifications

  • General Product Information
    • schydraulic-10-6pump
      HIGH OUTPUT CAPACITY
      GUARANTEED PERFORMANCE
      MULTIPLE OUTPUT CAPACITIES
      SIMPLE OPERATION PRINCIPLE
      DESIGNED FOR EASY MAINTENANCE
      WIDE RANGE OF OPERATING PRESSURES

      10-6 & D6 Series pumps have a 7" diameter air piston and a 2 1/2" stroke. Thirteen models are available with pressures up to 65,000 psig.

      When operating from 0 to rated hydraulic pressure, air consumption will be approximately 56 scfm of free air at 100 psi output. At lower air pressures and higher hydraulic pressures air consumption will be reduced proportionately to flow rates indicated.

      Mounting may be in any position, vertical preferred. When mounting in an inverted position, a drain cock should be provided to drain off any liquid that may accumulate in the pilot valve air chamber.

      The D6 Series "Dry Lube" pump is identical to the 10-6 Series except it is pre-lubricated and therefore does not require an air line lubricator. The part number distinguishes it from the 10-6 Series by the D6 prefix and using the actual ratio rather than a numerical code in the model suffix.

  • Applications
    • Staking
      Piercing
      Blanking
      Pressing
      Clamping
      Metal forming
      Static and burst testing
      Hydraulic Press operation
      Flow testing requiring relatively low flows at high pressures
      Applications requiring extreme intermittent pressure and velocity commonly associated with water blasting and jetting.

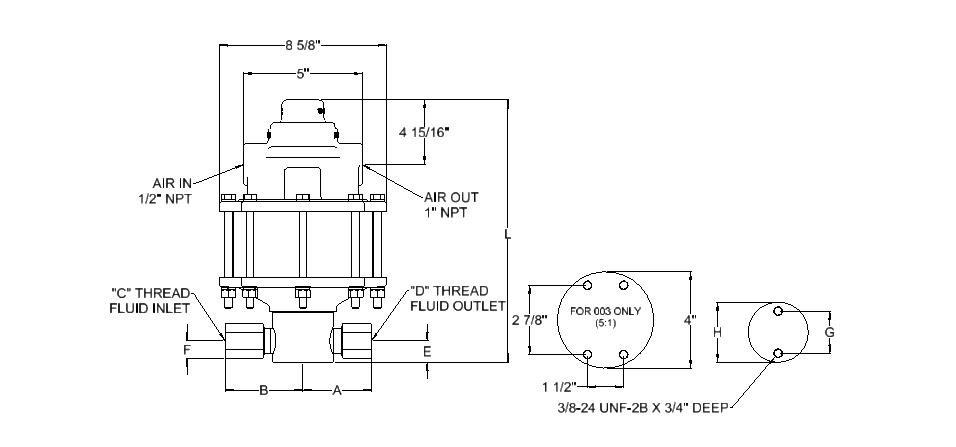

  • Dimensions
    • schydraulic-10-6pumpdims
      D6 Series
      Model
      (Ratio)
      10-6 Series
      Model
      L A B NPT/HF4 (Std) SAE/HF4 (Optional) E F G H
      C Thread D Thread C Thread D Thread
      5 003 19.625 4.875 2.375 1 1/4" 1" - - 1.5 2.5 --- 4
      10 005 18.625 4.75 4.375 1" 1" - - 1.375 1.375 2.375 3
      20 thru 35 010 thru 020 17.063 3 4 1" 1/2" - 10 SAE 1.000 1 1.75 2.5
      55 thru 180 030 thru 100 15.750 3 3.375 1/2" 1/2" 10 SAE 10 SAE 0.875 0.875 1.75 2.5
      240 thru 330 151 thru 201 16.000 2.5 2.313 3/8" 3/8" - 9/16"-18 * 0.875 0.875 1.75 2.5
      460 301 16 3.75 2.313 3/8" 9/16"-18 * - - 0.875 0.875 1.75 2.5
      740 402 16.25 4.25 2.313 3/8" 9/16"-18 * - - 1.125 1.125 2.375 3

      * Coned and threaded high pressure connection for 1/4" O.D. tubing.


      D6 Series
      Model
      (ratio)
      10-6
      Series
      Model
      Hydraulic
      Piston
      Diameter (in)
      Hydraulic
      Piston Area
      (in2)
      Volume
      per Stroke
      (in3)
      Air Pressure (PSI)
      10 20 30 40 50 60 70 80 90 100
      5 003 3.000 7.070 17.70 50 100 150 200 250 300 350 400 450 500
      10 005 2.125 3.560 8.900 85 185 285 390 490 590 690 795 900 1000
      20 010 1.438 1.620 4.050 165 425 650 875 1075 1300 1550 1750 1950 2150
      25 015 1.315 1.350 3.380 180 450 725 1000 1300 1550 1850 2125 2400 2700
      35 020 1.125 0.994 2.490 250 625 1025 1400 1800 2150 2500 2850 3250 3600
      55 030 0.875 0.601 1.500 450 1050 1700 2275 2900 3500 4100 4650 5200 6000
      95 050 0.688 0.371 0.928 750 1750 2800 3700 4750 5900 6875 7700 8750 9700
      145 080 0.563 0.249 0.623 1100 2600 4200 5550 7100 8500 10000 11500 12950 14400
      180 100 0.500 0.196 0.490 1500 3200 5200 7100 9000 10800 12500 14500 16300 18000
      240 151 0.438 0.15 0.375 1900 4400 6900 9100 11600 14000 16400 18800 21300 23700
      330** 201** 0.375 0.110 0.275 3000 6000 9500 12600 16000 19100 22300 25600 29000 32300
      460** 301** 0.313 0.077 0.193 4000 8800 13700 18000 22500 27000 31500 36500 41400 45800
      740** 402** 0.250 0.049 0.123 8000 15000 23000 29700 37200 45000 52500 59200 66500 ***

      All pumps are recommended for intermittent duty.
      ** Low duty intermittent operation recommended for pressures higher than 30,000-psi due to fatigue life limitation of materials of construction.


  • Ordering
    • schydraulic-l6ordering
      TABLE 1 Pump Series Designation (2)
      10-6 Series Lubricated Pump
      D6 Series "Dry Lube" Pump
      TABLE 2 Seal Compound - Air Motor
      0 Buna-N (standard)
      V Viton
      TABLE 3 Seal Compound - Hydraulic Section
      Blank Standard - No Modifications
      0 Buna-N nitrile (standard)
      E EPR - ethylene propylene
      V Fluorocarbon
      * Consult factory for special compounds
      TABLE 4 Modifications
      0 Standard Pump
      A "A" Modification
      B Botton Inlet
      C Chevron Seals
      D Bottom Inlet - heavy duty (3)
      E Bottom Inlet - "A" Modification
      F Isolator - Chevron Seals (3)
      G Isolator - heavy duty (3)
      H Heavy duty
      J Bottom Inlet - "K" modification
      K "K" Modification
      M Bottom Inlet - "A" and "K" Modification
      N Isolator - "A" Modification
      P Isolator - "K" Modification
      Q Isolator - "A" and "K" Modification
      R Isolator
      S Heavy duty - "K" Modification (3)
      U Heavy duty - bottom inlet - "K" Modification (3)
      V Heavy duty - isolator - "K" Modification (3)
      TABLE 5 Material of Construction - Hydraulic Section
      W Aluminum bronze & stainless steel (standard)
      B Aluminum bronze & stainless steel D5 Series (standard)
      S Stainless steel
      C Cad plate carbon steel, stainless steel (1)
      TABLE 6 Model Designation - Pressure Ratio
      Refer to pressure ratio charts for proper selection
      TABLE 7 Port Option
      Blank Standard Pump
      SAE Straight thread as indicated on chart
      HF4 9/16-18 x 1/4" OD tube 60K psi

      Additional modifications may be included with an "M" suffix at the end of the model number.

      Notes: (1) 25 piece minimum order
      (2) Do not fill gap on a two digit description.
      (3) "A" modification included with all Chevron and Heavy Duty seal modifications.
  • Modifications
    • A Models:These models utilize dual seals in the hydraulic assembly with a bleed-off between the seals to atmosphere, thus providing a visual indication of hydraulic seal leakage. Used where contamination of the air motor from the hydraulic fluid being pumped is objectionable.

      schydraulic-amod

      B Models:The "B" models have a bottom inlet connection for convenient tank top installation or alternate mounting configuration.

      schydraulic-bmod

      C Models: The "C" Models utilize PTFE chevron packing in the hydraulic assembly for ultimate performance when other packing material is not compatible with the fluid used or because of extreme temperature conditions. The "A" modification is included on all "C" models and the check valves have PTFE o-rings.

      H Models:The "H" Models utilize special packing in the hydraulic assembly for maximum performance where hydraulic fluid media is contaminated with foreign matter, thus providing for a much greater life expectancy from the hydraulic seals than with standard o-ring seals. The "A" modification is included on all "H" models and the check valves have PTFE o-rings.

      schydraulic-hmod

      K Models:This models utilize a special air piston in the air motor assembly which decreases the stroke of the pump, thus minimizing the internal forces and increasing air motor life. Used in applications exhibiting rapid pressure losses, such as burst testing.

      R Models:The "R" Models are furnished with an isolator attachment which prevents the hydraulic piston retracting into the air motor during operation, thus providing for 100% non-contamination of the hydraulic assembly from the air motor. The isolator also acts as a heat barrier.

      schydraulic-rmod
  • Performance Chart
    • schydraulic-10-6-003perfchart schydraulic-10-6-005perfchart schydraulic-10-6-010perfchart schydraulic-10-6-015perfchart schydraulic-10-6-020perfchart schydraulic-10-6-030perfchart schydraulic-10-6-050perfchart schydraulic-10-6-080perfchart schydraulic-10-6-100perfchart schydraulic-10-6-151perfchart schydraulic-10-6-201perfchart

      Low duty intermittent operation recommended for pressures higher than 30,000-psi due to fatigue life limitation of materials of construction.

      schydraulic-10-6-301perfchart

      Low duty intermittent operation recommended for pressures higher than 30,000-psi due to fatigue life limitation of materials of construction.

      schydraulic-10-6-402perfchart

      Low duty intermittent operation recommended for pressures higher than 30,000-psi due to fatigue life limitation of materials of construction.

  • Cutaway
    • schydraulic-D&10pumpcutaway
